Cube Bikes, Waldershof, Germany

Rooflight F100


Place / country:Waldershof, Germany
Year:2011
Building type:Logistics Centre
Solutions:Smoke Lift Rooflight F100
Upstands
Motorised openers
SHEV fittings. Central DIN pushbutton
Pneumatic-electric pressure switch
Wind and rain sensor set
Efficiency:32% energy saving Uw=2.1 W/(m²K) vs. Uw=3.1 W/(m²K) as per German Energy Performance of Buildings Directive 2009

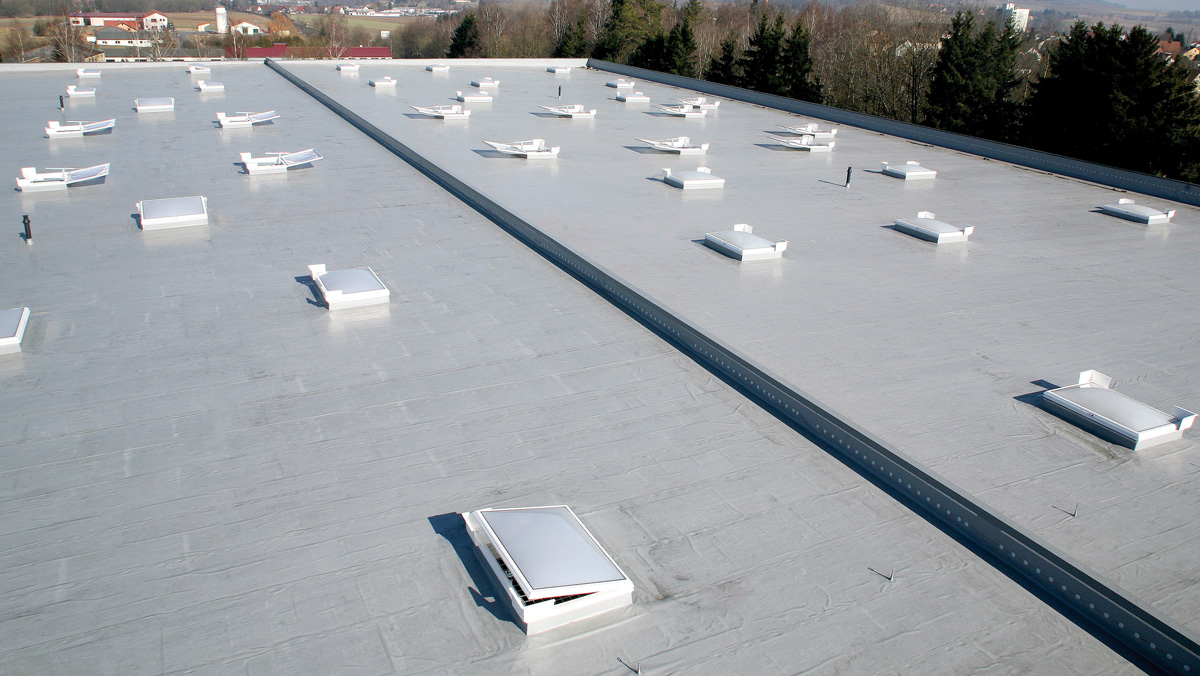

Extensive, energy-saving lighting in the new building using natural light, a reliable smoke and heat exhaust system and energy-efficient natural ventilation in the warehouse.

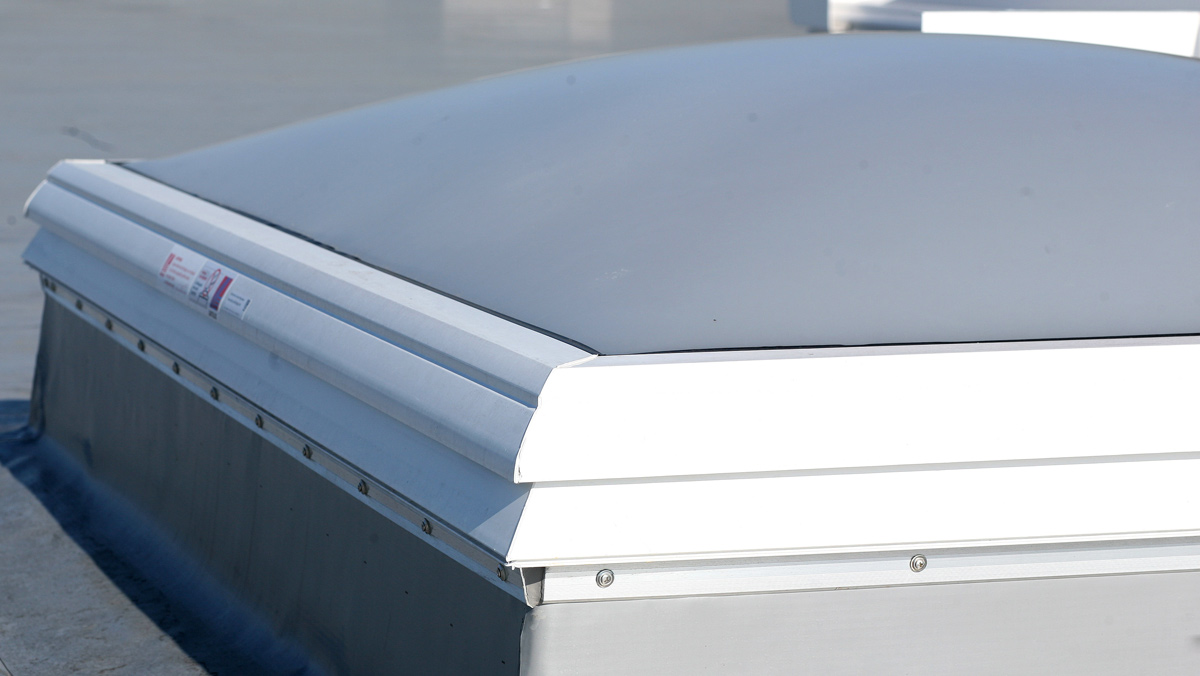

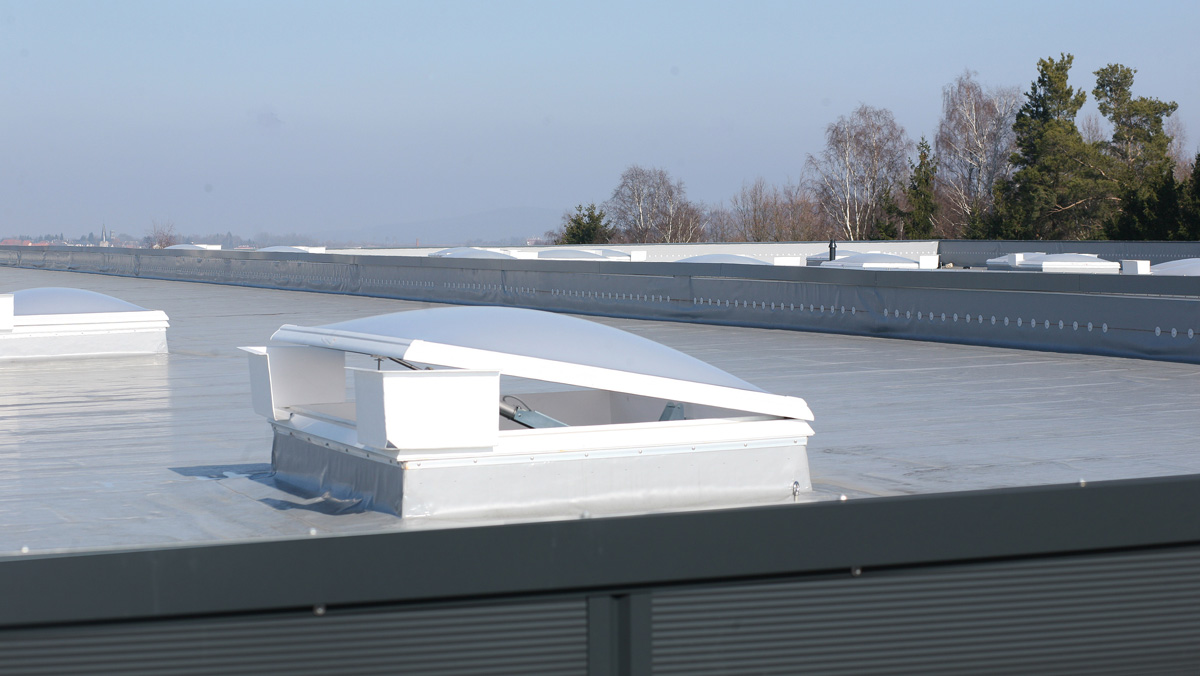

  • Rooflights F100 as SHEV systems, thermally separated and free of thermal bridges, designed to hold SHEV fitting
  • Fibre-reinforced composite upstands featuring a seamless design and a thermal insulation core
  • TIP technology: completely heat-insulated overall system

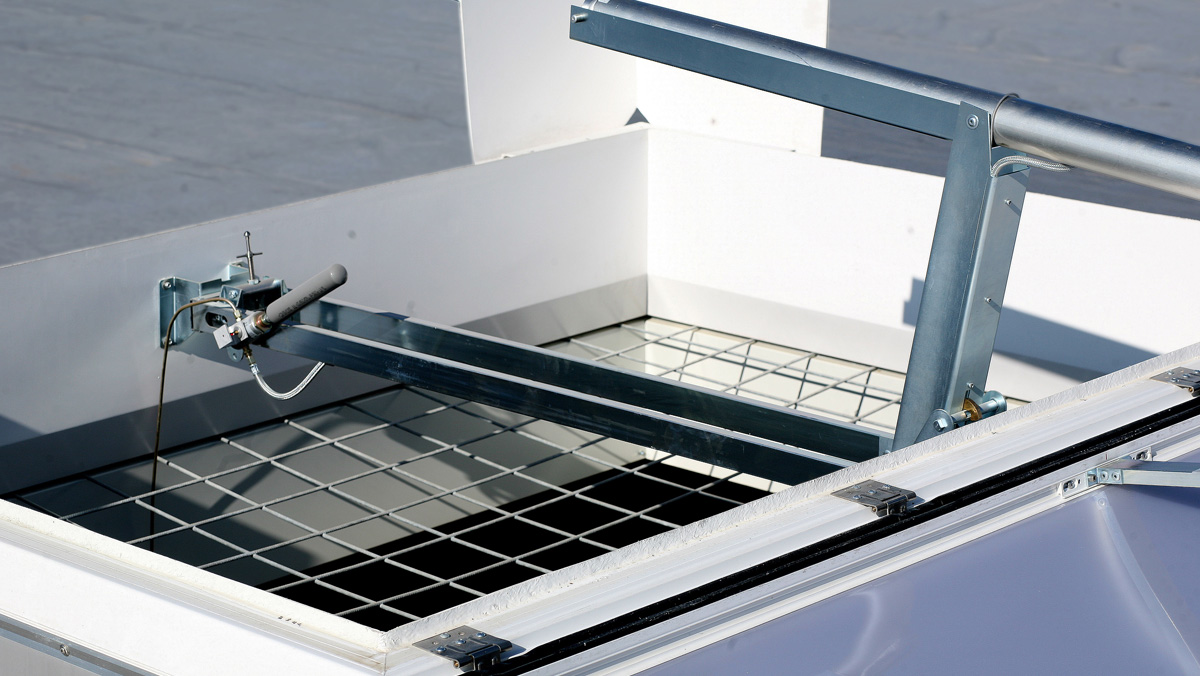

  • SHEV fittings (DIN EN 12101-2) with CO2 remote and thermal release
  • CO2 alarm station and SHEV control panels to activate ventilation and smoke exhaust drives
  • Double-glazed, opal glass, 70% light transmission and 70% energy transmission
